Control system-Pump Archives - (주)엘피엠테크-LPMTECH https://lpmtech.co.kr/portfolio_category/control-system-pump/ 농축기, 세포배양기, 레귤레이터, 가스혼합기, MFC, 스태틱믹서, 유량계 등 실험장비 및 유체 계측/혼합장비 전문업체 Wed, 02 Jun 2021 07:11:58 +0000 ko-KR hourly 1 https://wordpress.org/?v=6.7.4 VCP-DP https://lpmtech.co.kr/portfolio-items/vcp-dp/ Wed, 26 May 2021 05:21:03 +0000 https://lpmtech.co.kr/?post_type=avada_portfolio&p=20244 Oilless piston pump (Double head type-Parallel Con'n) VCP-DP Series » Voltage : 100~110, 220~240VAC / 50-~60Hz » Flow rate : Max. 73~146LPM » Vacuum : Max. 650~680mmHg » Pressure : Max. 3~9bar » Connection type : R 1/4" » Motor type : Capacitor Start type » Insulation class [...]

The post VCP-DP appeared first on (주)엘피엠테크-LPMTECH.

]]>

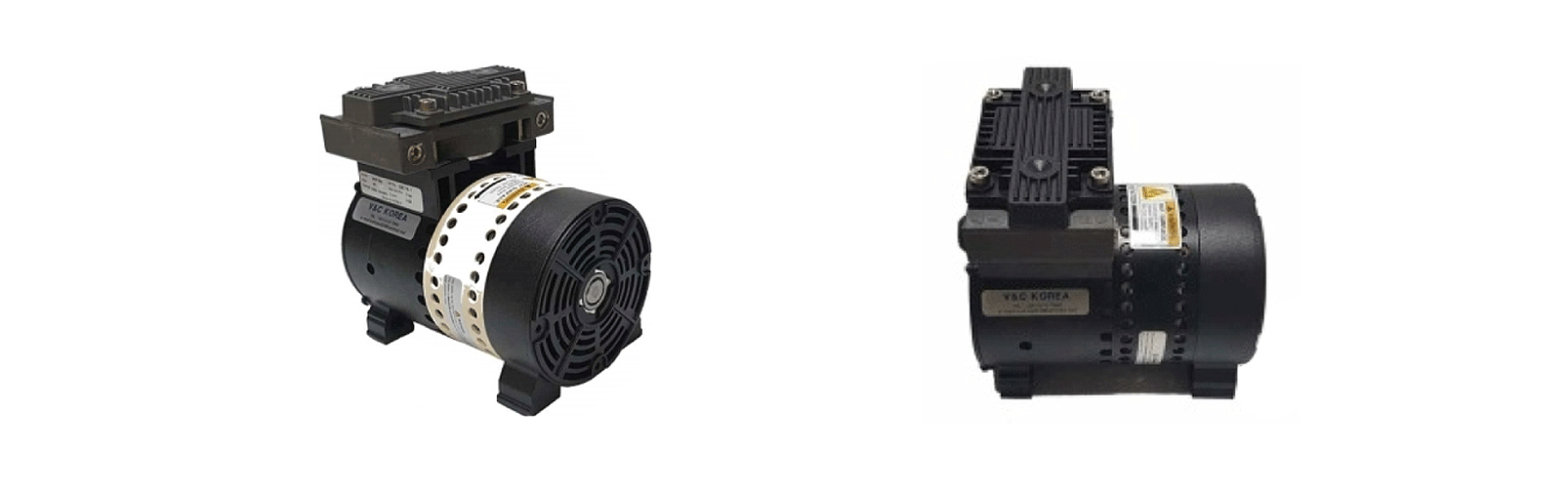

Oilless piston pump (Double head type-Parallel Con’n)

VCP-DP Series

» Voltage : 100~110, 220~240VAC / 50-~60Hz
» Flow rate : Max. 73~146LPM
» Vacuum : Max. 650~680mmHg
» Pressure : Max. 3~9bar
» Connection type : R 1/4″
» Motor type : Capacitor Start type
» Insulation class : B class
» Thermal protector : 135℃

제품리스트 　
카탈로그 다운로드 　
　견적요청 　

특징

» 소형 피스톤 펌프
» 컴팩트한 사이즈로 의료기기 또는 연구 실험 장비에 적합
» 합리적인 가격
» Made in Korea
» Option : 소음기

Model

VCP-80D

VCP-100D

VCP-120D

VCP-140D

Voltage

100~110, 220~240vac / 50-~60Hz

Max. Flow rate

73LPM

110LPM

125LPM

146LPM

Max. Vacuum

650mmHg

680mmHg

680mmHg

680mmHg

Max. Pressure

7bar

9bar

9bar

3bar

Current at Max. load

1.88A

3.07A

3.35A

3.56A

Power at Max. load

397W

646W

740W

788W

Net weight

8.5kg

8.8kg

8.8kg

8.8kg

Dimensions

240(L)*130(W)*177(H)

Connection type

R 1/4”

Motor type

Capacitor Start Type

Insulation class

B Class

Thermal protector

135℃

Min. ambient start temperature

10℃


* 더 자세한 사양은 카달로그를 참고해주시기 바랍니다.

  카달로그 – VCP-DP Series_Catalogue (EN)

The post VCP-DP appeared first on (주)엘피엠테크-LPMTECH.

]]> VCP-DV https://lpmtech.co.kr/portfolio-items/vcp-2/ Wed, 26 May 2021 05:01:50 +0000 https://lpmtech.co.kr/?post_type=avada_portfolio&p=20235 Oilless piston pump (Double head type-Serial Con'n) VCP-DV Series » Voltage : 100~110, 220~240VAC / 50-~60Hz » Flow rate : Max. 47~95LPM » Vacuum : Max. 730~740mmHg » Pressure : N.A » Connection type : R 1/4" » Motor type : Capacitor Start type » Insulation class : [...]

The post VCP-DV appeared first on (주)엘피엠테크-LPMTECH.

]]>

Oilless piston pump (Double head type-Serial Con’n)

VCP-DV Series

» Voltage : 100~110, 220~240VAC / 50-~60Hz
» Flow rate : Max. 47~95LPM
» Vacuum : Max. 730~740mmHg
» Pressure : N.A
» Connection type : R 1/4″
» Motor type : Capacitor Start type
» Insulation class : B class
» Thermal protector : 135℃

제품리스트 　
카탈로그 다운로드 　
　견적요청 　

특징

» 소형 피스톤 펌프 – Vacuum only
» 컴팩트한 사이즈로 의료기기 또는 연구 실험 장비에 적합
» 합리적인 가격
» Made in Korea
» Option : 소음기

Model

VCP-40D

VCP-50D

VCP-60D

VCP-70D

Voltage

100~110, 220~240vac / 50-~60Hz

Max. Flow rate

47LPM

69LPM

80LPM

95LPM

Max. Vacuum

730mmHg

740mmHg

740mmHg

740mmHg

Max. Pressure

N.A

N.A

N.A

N.A

Current at Max. load

1.45A

1.88A

2.13A

2.22A

Power at Max. load

288W

400W

458W

473W

Net weight

8.5kg

8.8kg

8.8kg

8.8kg

Dimensions

240(L)*130(W)*177(H)

Connection type

R 1/4”

Motor type

Capacitor Start Type

Insulation class

B Class

Thermal protector

135℃

Min. ambient start temperature

10℃


* 더 자세한 사양은 카달로그를 참고해주시기 바랍니다.

  카달로그 – VCP-DV Series_Catalogue (EN)

The post VCP-DV appeared first on (주)엘피엠테크-LPMTECH.

]]> VCP-S https://lpmtech.co.kr/portfolio-items/vcp/ Wed, 26 May 2021 04:36:07 +0000 https://lpmtech.co.kr/?post_type=avada_portfolio&p=20226 Oilless piston pump (Single head type) VCP-S Series » Voltage : 100~110, 220~240VAC / 50-~60Hz » Flow rate : Max. 52~90LPM » Vacuum : Max. 650~680mmHg » Pressure : Max. 2~7bar » Connection type : R 1/4" » Motor type : Capacitor Start type » Insulation class : [...]

The post VCP-S appeared first on (주)엘피엠테크-LPMTECH.

]]>

Oilless piston pump (Single head type)

VCP-S Series

» Voltage : 100~110, 220~240VAC / 50-~60Hz
» Flow rate : Max. 52~90LPM
» Vacuum : Max. 650~680mmHg
» Pressure : Max. 2~7bar
» Connection type : R 1/4″
» Motor type : Capacitor Start type
» Insulation class : B class
» Thermal protector : 135℃

제품리스트 　
카탈로그 다운로드 　
　견적요청 　



특징

» 소형 Air Vacuum & Compressor
» 컴팩트한 사이즈로 의료기기 또는 연구 실험 장비에 적합
» 합리적인 가격
» Made in Korea
» Option : 소음기

Model

VCP-40S

VCP-50S

VCP-60S

VCP-70S

Voltage

100~110, 220~240vac / 50-~60Hz

Max. Flow rate

52LPM

70LPM

82LPM

90LPM

Max. Vacuum

650mmHg

680mmHg

680mmHg

680mmHg

Max. Pressure

7bar

9bar

3bar

2bar

Current at Max. load

1.23A

2.18A

2.13A

2.03A

Power at Max. load

254W

455W

448W

423W

Net weight

4.85kg

5.8kg

5.8kg

5.8kg

Dimensions

170(L)*130(W)*177(H)

180(L)*130(W)*177(H)

Connection type

R 1/4”

Motor type

Capacitor Start Type

Insulation class

B Class

Thermal protector

135℃

Min. ambient start temperature

10℃


* 더 자세한 사양은 카달로그를 참고해주시기 바랍니다.

  카달로그 – VCP-S Series_Catalogue (EN)

The post VCP-S appeared first on (주)엘피엠테크-LPMTECH.

]]>
