Portable Mass Flow Meter

mfm

MB Series

» Range : lowest range 0-0.5 sccm/0-500 sμlm
                  up to highest range 0-5000 slpm

» Standard Accuracy : ±0.6%

» Optional High-Accuracy : ±0.5%

» Typical Response Time : 5~10ms

» Repeatability : 0.1% of reading +0.02% of full scale

» Operating temperature : -10°C to +60°C

» Max internal pressure (static) : 145 psig

» Warm-up Time : < 1 Second

제품리스트 　
카탈로그 다운로드 　
　견적요청 　

휴대용 가스 MFM

검증 또는 캘리브레이션을 위하여 운영 프로세스를 중단하는 것은 필요 악입니다. Alicat의 휴대용 유량 교정기는 가동 중단 시간을 줄이고 공정 중단을 줄임으로써, 이 절차를 보다 더 만족스럽게 만듭니다. 넓은 유량 범위에서 여러 가스에 대한 실시간 측정 값을 확인 할 수 있습니다.

특징

» 충전식 배터리로 휴대 가능한 MFM (풀 충전으로 18시간 작동)

» 빠른 응답속도 (<10ms)

» Warm-up 타임 불필요, 1초 내에 측정 준비 가능

» 컴퓨터 또는 PLC와 함께 사용 가능 (컴퓨터 또는 PLC 없이 단독 유닛으로도 사용 가능)

» 모든 유량 데이터를 하나의 스크린에서 확인 가능 (Flow, Pressure, Temperature)

» 디지털 및 아날로그 출력

동영상

Performance

Accuracy at calibration conditions after tare

± (0.8% of Reading + 0.2% of Full Scale)
High Accuracy at calibration conditions after tare

± (0.4% of Reading + 0.2% of Full Scale)
High Accuracy option not available for units ranged under 5 sccm or over 500 slpm.

Accuracy for Bidirectional Meters
at calibration conditions after tare

± (0.8% of reading + 0.2% of total span from positive full scale to negative full scale)

Repeatability

± 0.2% Full Scale
Zero Shift and Span Shift

0.02% Full Scale / ºCelsius / Atm

Operating Range / Turndown Ratio

1% to 100% Full Scale / 100:1 Turndown
Maximum Measurable Flow Rate

up to 128% Full Scale (Gas Dependent)

Typical Response Time

10 ms (Adjustable)
Warm-up Time

< 1 Second

Battery Life

Monochrome display at 10 Contrast: 18 hours
/ Color display at 10 Brightness: 5 hours

Recharge Time

3.5 hours with 2A USB supply and device turned off



Operating Conditions

Mass Reference Conditions (STP)

25ºC & 14.696 psia (standard — others available on request)
Operating Temperature

−10 to +60 ºCelsius

Charging Temperature

0 to +45º Celsius
Humidity Range (Non–Condensing)

0 to 100%

Maximum Internal Pressure (Static)

145 psig

Maximum Allowable Instantaneous Differential
Pressure Across Device (Inlet to Outlet)

75 psid

Proof Pressure

175 psig
Mounting Attitude Sensitivity

None

Ingress Protection

IP40
Wetted Materials

316LSS, FFKM (Kalrez) standard; Viton, EPDM, Buna, Neoprene as needed for some gases. If your application demands a different material, please contact Alicat.

Communications/Power

Monochrome LCD or Color TFT Display with
integrated touchpad

Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature

Digital Output Signal1 Options

RS-232 Serial
Analog Output Signal2 Options

0-5 Vdc / 1-5 Vdc / 4-20 mA
(Receiver resistance must be below 250 ohms)

Optional Secondary Analog Output Signal2

0-5 Vdc / 1-5 Vdc / 4-20 mA
(Receiver resistance must be below 250 ohms)

Electrical Connection Options

Micro-USB-B / 8 Pin Mini-DIN

Supply Voltage

+5Vdc (Micro-USB-B) / +7 to +30Vdc (8 Pin Mini-DIN)

1. The Digital Output Signal communicates Mass Flow, Volumetric Flow, Pressure and Temperature.

2. The Analog Output Signal and Optional Secondary Analog Output Signal communicate your choice of Mass Flow, Volumetric Flow,
Pressure or Temperature.



* 더 자세한 사양은 카달로그를 참고해주시기 바랍니다.

The post MB Series appeared first on (주)엘피엠테크-LPMTECH.

]]> MW Series https://lpmtech.co.kr/portfolio-items/mw-series/ Thu, 30 Jan 2020 05:03:30 +0000 http://lpmtech.co.kr/?post_type=avada_portfolio&p=16598 Whisper Mass Flow Meter MW Series » Range : lowest range 0-0.5 sccm / 0-500 sμlm                   up to highest range 0-1000 slpm » Accuracy : ± (0.8% of Reading + 0.2% of Full Scale) » Typical Response Time [...]

The post MW Series appeared first on (주)엘피엠테크-LPMTECH.

]]>

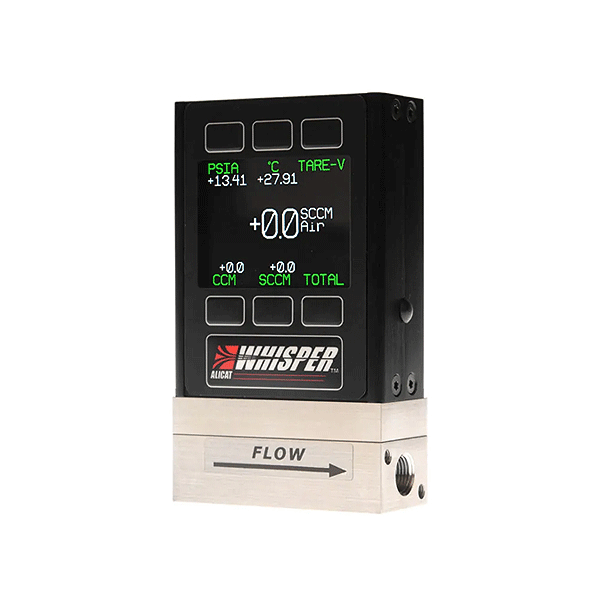

Whisper Mass Flow Meter

MW Series

» Range : lowest range 0-0.5 sccm / 0-500 sμlm
                  up to highest range 0-1000 slpm

» Accuracy : ± (0.8% of Reading + 0.2% of Full Scale)
» Typical Response Time : 10 ms (Adjustable)
» Repeatability : ± 0.2% Full Scale
» Operating temperature : -10°C to +60°C
» Max internal pressure (static) : 45 psig
» Warm-up Time : < 1 Second

제품리스트 　
카탈로그 다운로드 　
　견적요청 　

높은 정확도, 시스템 영향을 최소화한 다변량 유량 측정
압력 손실이 낮은 “Whisper” 시리즈 Mass Flow Meter는 시스템 충격을 최소화하여 대기압 근처 또는 시스템 압력이 거의 없을 때 유량 측정이 가능합니다.
광범위한 사용 유량 범위 및 다양한 가스를 위한 캘리브레이션 기능은 이 MFM을 오랫동안 작동 상태로 유지합니다.

특징

» 빠른 응답속도 (<10ms)
» Warm-up 타임 불필요, 1초 내에 측정 준비 가능
» 컴퓨터 또는 PLC와 함께 사용 가능 (컴퓨터 또는 PLC 없이 단독 유닛으로도 사용 가능)
» 모든 유량 데이터를 하나의 스크린에서 확인 가능 (Flow, Pressure, Temperature)
» 디지털 및 아날로그 출력

동영상

Performance

Accuracy at calibration conditions after tare

± (0.8% of Reading + 0.2% of Full Scale)
High Accuracy at calibration conditions after tare

± (0.4% of Reading + 0.2% of Full Scale) High Accuracy option not available for units ranged under 5 sccm or over 500 slpm.

Accuracy for Bidirectional Meters
at calibration conditions after tare

± (0.8% of reading + 0.2% of total span
from positive full scale to negative full scale)

Repeatability

± 0.2% Full Scale
Zero Shift and Span Shift

0.02% Full Scale / ºCelsius / Atm

Operating Range / Turndown Ratio

0.5% to 100% Full Scale / 200:1 Turndown
Maximum Measurable Flow Rate

up to 128% Full Scale (Gas Dependent)

Typical Response Time

10 ms (Adjustable)
Warm-up Time

< 1 Second

Operating Conditions

Mass Reference Conditions (STP)

25ºC & 14.696 psia (standard — others available on request)
Operating Temperature

−10 to +60 ºCelsius

Humidity Range (Non–Condensing)

0 to 100%

Maximum Internal Pressure (Static)

45 psig

Maximum Allowable Instantaneous Differential
Pressure Across Device (Inlet to Outlet)

15 psid

Proof Pressure

175 psig
Mounting Attitude Sensitivity

None

Ingress Protection

IP40
Wetted Materials

303 & 302 Stainless Steel, Viton®, Heat Cured Silicone Rubber, Glass Reinforced Polyphenylene Sulfide, Heat Cured Epoxy, Aluminum, Gold, Silicon, Glass.
If your application demands a different material, please contact Alicat.

Communications/Power

Monochrome LCD or Color TFT Display
with integrated touchpad

Simultaneously displays Mass Flow,
Volumetric Flow,
Pressure and Temperature

Digital Output Signal1 Options

RS-232 Serial / RS-485 Serial / Modbus / EtherNet IP / DeviceNet / PROFIBUS

Analog Output Signal2 Options

0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA
Optional Secondary Analog Output Signal2

0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA

Electrical Connection Options

8 Pin Mini-DIN / 9-pin D-sub (DB9) / 15-pin D-sub (DB15) / 6 pin locking
Supply Voltage

7 to 30 Vdc (15-30 Vdc for 4-20 mA outputs)

Supply Current

0.040 Amp (+ output current on 4-20 mA)

1. The Digital Output Signal communicates Mass Flow, Volumetric Flow, Pressure and Temperature.
2. The Analog Output Signal and Optional Secondary Analog Output Signal communicate your choice of Mass Flow, Volumetric Flow,
Pressure or Temperature.

* 더 자세한 사양은 카달로그를 참고해주시기 바랍니다.

The post MW Series appeared first on (주)엘피엠테크-LPMTECH.

]]> MS Series https://lpmtech.co.kr/portfolio-items/ms-series/ Thu, 30 Jan 2020 07:03:09 +0000 http://lpmtech.co.kr/?post_type=avada_portfolio&p=16605 Anti-Corrosive Mass Flow Meter MS Series » Range : lowest range 0-0.5 sccm/0-500 sμlm                   up to highest range 0-5000 slpm » Accuracy : ± (0.8% of Reading + 0.2% of Full Scale) » Typical Response Time : 10 [...]

The post MS Series appeared first on (주)엘피엠테크-LPMTECH.

]]>

Anti-Corrosive Mass Flow Meter

mfm

MS Series

» Range : lowest range 0-0.5 sccm/0-500 sμlm
                  up to highest range 0-5000 slpm

» Accuracy : ± (0.8% of Reading + 0.2% of Full Scale)
» Typical Response Time : 10 ms (Adjustable)
» Repeatability : ± 0.2% Full Scale
» Operating temperature : -10°C to +60°C
» Max internal pressure (static) : 145 psig
» Warm-up Time : < 1 Second

제품리스트 　
카탈로그 다운로드 　
　견적요청 　

높은 정확도, 실시간 다변량 유량 측정

질량 유량, 체적 유량, 라인 압력 및 온도를 동시에 실시간으로 측정합니다. 광범위한 사용 유량 범위 및 다양한 가스를 위한 캘리브레이션 기능은 이 MFM을 오랫동안 작동 상태로 유지합니다.

특징

» 내구성이 강한 SUS316L으로 제작되어 부식에 강함
» 빠른 응답속도 (<10ms)
» Warm-up 타임 불필요, 1초 내에 측정 준비 가능
» 컴퓨터 또는 PLC와 함께 사용 가능 (컴퓨터 또는 PLC 없이 단독 유닛으로도 사용 가능)
» 모든 유량 데이터를 하나의 스크린에서 확인 가능 (Flow, Pressure, Temperature)
» 디지털 및 아날로그 출력

동영상


Performance

Accuracy at calibration conditions after tare

± (0.8% of Reading + 0.2% of Full Scale)
High Accuracy at calibration conditions after tare

± (0.4% of Reading + 0.2% of Full Scale)
High Accuracy option not available for units ranged under 5 sccm or over 500 slpm.

Accuracy for Bidirectional Meters
at calibration conditions after tare

± (0.8% of reading + 0.2% of total span from positive full scale to negative full scale)

Repeatability

± 0.2% Full Scale
Zero Shift and Span Shift

0.02% Full Scale / ºCelsius / Atm

Operating Range / Turndown Ratio

1% to 100% Full Scale / 100:1 Turndown
Maximum Measurable Flow Rate

up to 128% Full Scale (Gas Dependent)

Typical Response Time

10 ms (Adjustable)
Warm-up Time

< 1 Second

Operating Conditions

Mass Reference Conditions (STP)

25ºC & 14.696 psia (standard — others available on request)
Operating Temperature

−10 to +60 ºCelsius

Humidity Range (Non–Condensing)

0 to 100%
Maximum Internal Pressure (Static)

145 psig

Maximum Allowable Instantaneous Differential
Pressure Across Device (Inlet to Outlet)

75 psid

Proof Pressure

175 psig
Mounting Attitude Sensitivity

None

Ingress Protection

IP40
Wetted Materials

316LSS, FFKM (Kalrez) standard; Viton, EPDM, Buna, Neoprene as needed for some gases.
If your application demands a different material, please contact Alicat.

Communications/Power

Monochrome LCD or Color TFT Display with
integrated touchpad

Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature
Digital Output Signal1 Options

RS-232 Serial / RS-485 Serial / Modbus RTU / PROFIBUS / EtherNet/IP / DeviceNet / Modbus TCP/IP / EtherCAT

Analog Output Signal2 Options

0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA
Optional Secondary Analog Output Signal2

0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA

Electrical Connection Options

8 Pin Mini-DIN / 9-pin D-sub (DB9) / 15-pin D-sub (DB15) / 6 pin locking / 8pin M12

Supply Voltage

7 to 30 Vdc (15-30 Vdc for 4-20 mA outputs)

Supply Current

0.040 Amp (+ output current on 4-20 mA)

1. The Digital Output Signal communicates Mass Flow, Volumetric Flow, Pressure and Temperature.
2. The Analog Output Signal and Optional Secondary Analog Output Signal communicate your choice of Mass Flow, Volumetric Flow,
Pressure or Temperature.

* 더 자세한 사양은 카달로그를 참고해주시기 바랍니다.
