OM Small Series

소유량용 오발기어 유량계

» Flow range : 0.02~9.1 lpm
» Pressure range : max.100 barg
» Size : 1/8″ ~ 3/8″
» Accuracy : ±0.5~1.0% of reading
» Temperature : -40 ~ 150℃
» Output Signal : Pulse
» Power : 12~30 VDC
» Body Material : Aluminum, Stainless Steel 316
Catalogue Download

OM Medium Series

중유량용 오발기어 유량계

» Flow range : 1~500 lpm
» Pressure range : max.100 barg
» Size : 1/2″ ~ 2″
» Accuracy : ±0.5~1.0% of reading
» Temperature : -40 ~ 150℃
» Output Signal : Pulse
» Power : 12~30 VDC
» Body Material : Aluminum, Stainless Steel 316L
Catalogue Download

OM Large Series

대유량용 오발기어 유량계

» Flow range : 35~2500 lpm
» Pressure range : max.12 barg
» Size : 3″ ~ 4″
» Accuracy : ±0.5~1.0% of reading
» Temperature : -40 ~ 150℃
» Output Signal : Pulse
» Power : 12~30 VDC
» Body Material : Aluminum, Stainless Steel 316
Catalogue Download

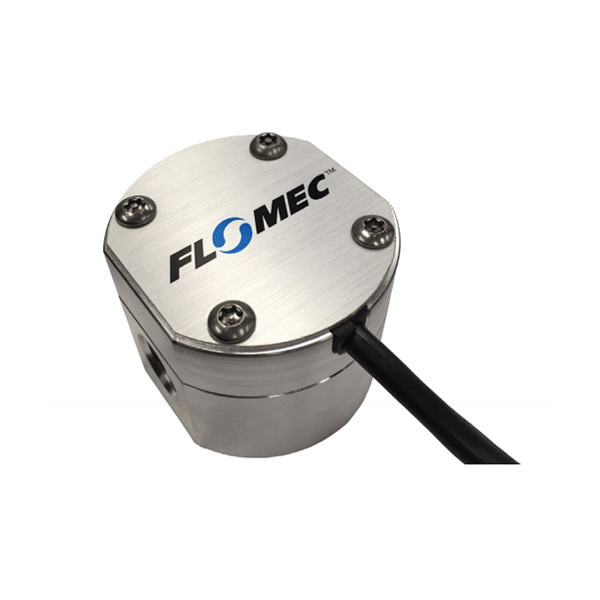

EGM Series

전자 오발기어 유량계

» Flow range : 0.02 ~ 80 lpm
» Pressure range : max. 55 barg
» Size : 1/8″ ~ 3/4″
» Accuracy : ±1.0% of reading
» Temperature : -50 ~ 80℃
» Output Signal : Pulse
» Power : 12~30 VDC
» Body Material : Aluminum, Stainless Steel 316
Catalogue Download
